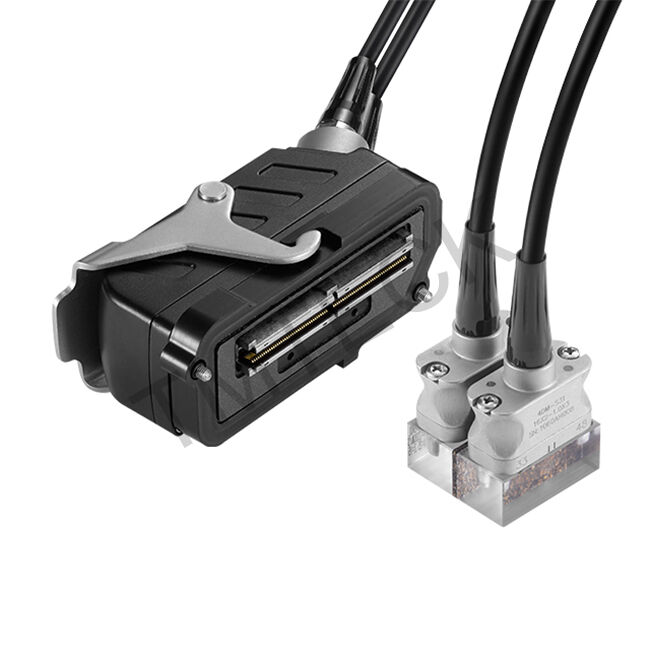

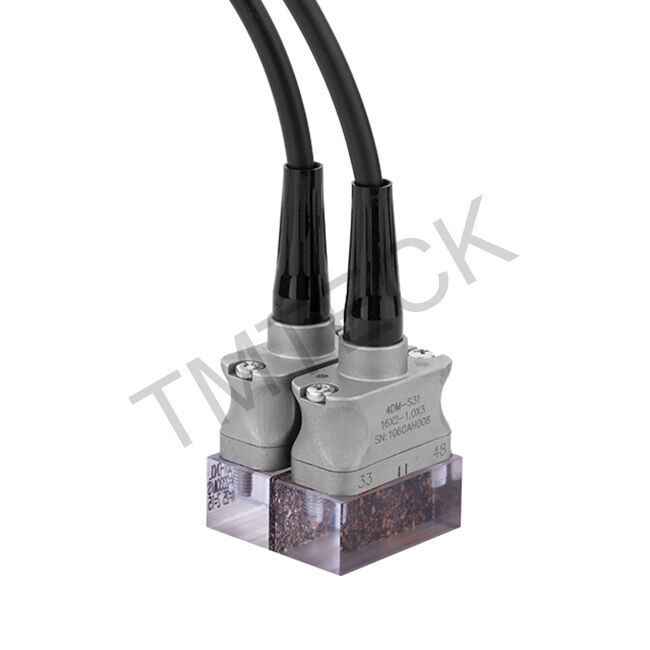

TS31 A17 Dual 1.5D Matrix Probe

Dual 1.5D Probes: Provide off-the-shelf inspection capabilities to cover a wider range of inspections with a superior signal-to-noise ratio.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Use for wave S-scans, pitch-catch longitudinal inspection strategy for better inspection.

3.Combined with detection, high detection accuracy and the small defects are quantified.

4.Wide the detection range, good SNR.

Applications

1.Railway: rails, wheel tracks, bridges, etc.

2.Conventional: Weld Inspection, Bottle Welds, Pipeline Turbine Blades, Rotor Detection

3.Electricity: welds, forgings, castings, fittings, bridges and structural steel

4.Other: Austenite detection

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:2.25DM7x4-2.8x3-TS31

Element:56

Element Shape:Dual 1.5D Matrix

Size:LxWxH 34x16x25(mm)1.34x0.63x0.98(in)

Application:Railway: rails, wheel tracks, bridges, etc.

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
