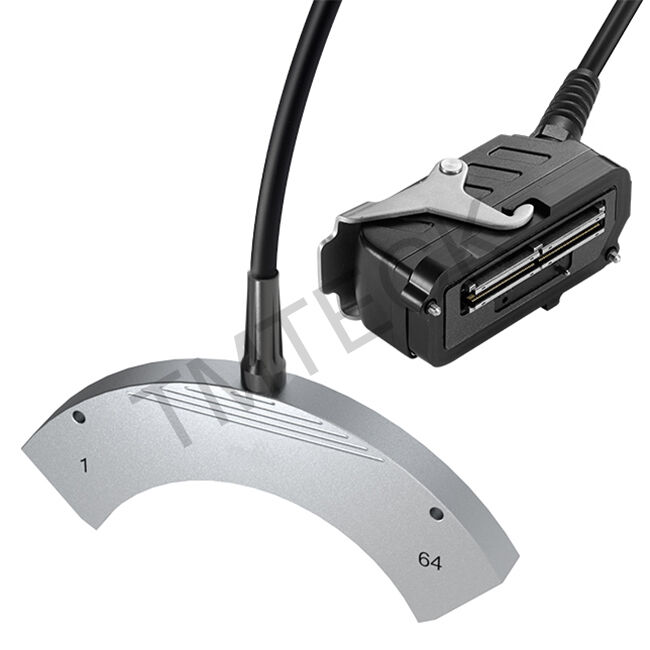

TS30 R5 Concave Probe

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5C64-1.65x8-TS30/5C64-105.6x8-R5

Element:64

Element Shape:Concave

Size:R50,LxWxH 131x14x55(mm)5.16x0.55x2.17(in)

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
